350213-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350213-1
Datasheet:
Description:

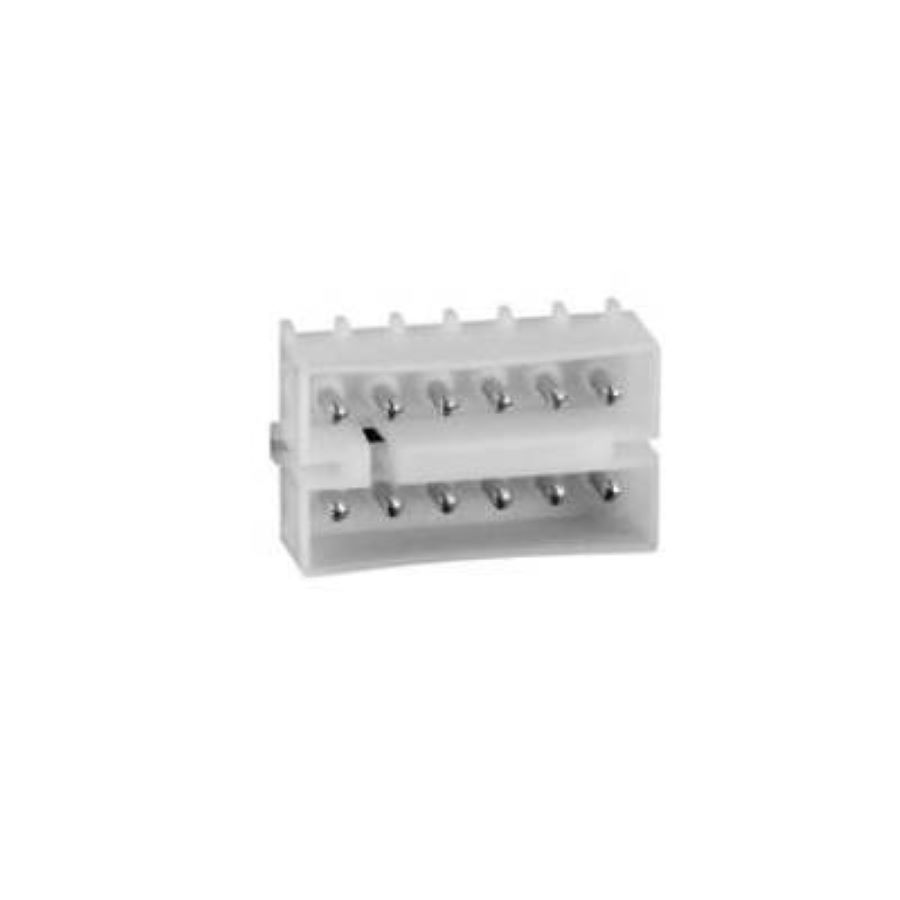

Headers and Wire Housings Through Hole Pin Number of Positions:12 Pitch:4.95 mm
| Parameter | Value |
|---|---|
| Length | 32.766 mm |
| Width | 19.94 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 9.525 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 4.95 mm |
| Number of Terminals | 12 |
| Current Rating | 13 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 12 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 12 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 232.156 mm |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 12 A |
| Housing Color | Natural |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Number of Power Positions | 12 |
| VDE Tested | Yes |
| Mating Post Length | 4.6 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.81 mm |
